Precision Charging for Serious RC Performance

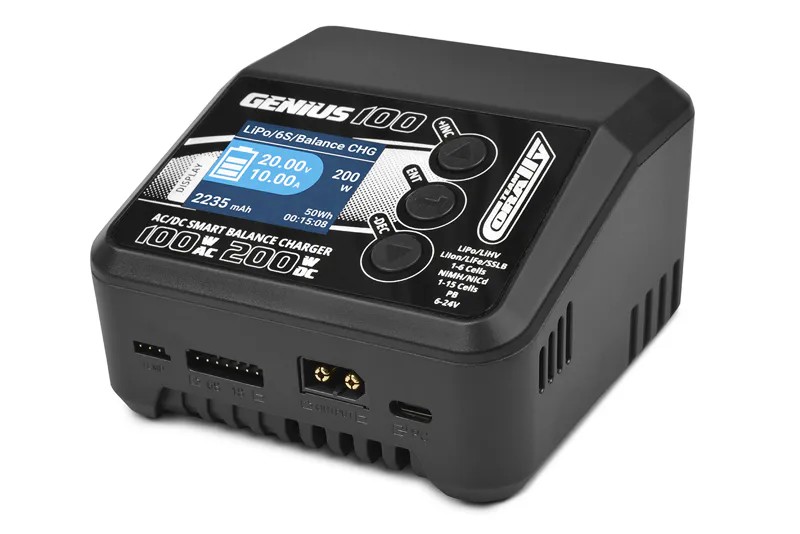

The Team Corally GENIUS 100 is a compact, high-performance AC/DC smart charger developed for demanding RC enthusiasts who expect speed, accuracy and complete control over their batteries.
With its integrated 100–240V AC power supply, the GENIUS 100 delivers up to 100W of charging power without requiring an external power source. At the track, it can be connected to a suitable 5.8–30V DC supply to unlock its full charging output of up to 200W. Combined with an adjustable charging current of up to 13A, this provides the performance required for both compact receiver batteries and high-capacity propulsion packs.
Advanced Multi-Chemistry Charging
The GENIUS 100 supports the battery chemistries most commonly used in modern RC applications. Lithium batteries from 1S to 6S are supported, together with NiMH and NiCd packs of up to 15 cells and lead-acid batteries from 2 to 20V.
Dedicated operating programs allow lithium batteries to be balance charged, normally charged, discharged or prepared for storage. NiMH and NiCd users benefit from charge, discharge, Re-Peak and cycling programs, while separate modes are provided for standard lead-acid, AGM and cold-condition charging.
High-Performance Cell Balancing
A battery pack can only perform as well as its individual cells. The GENIUS 100 therefore features an integrated balancer capable of delivering up to 1.3A of balancing current, with a balancing tolerance of ±0.01V.
This high balancing performance helps reduce voltage differences between individual lithium cells, allowing packs to reach a more consistent state of charge and helping maintain reliable performance throughout their service life.
Intelligent Power Beyond Charging
The GENIUS 100 is more than a conventional battery charger. Its adjustable CC/CV power supply mode transforms the unit into a versatile DC power source for compatible RC electronics and workshop equipment.
The output voltage can be adjusted from 2.0 to 30.0V, while the current can be set from 1.0 to 13.0A. Automatic switching between constant-current and constant-voltage operation provides stable and controlled power delivery for a wide variety of applications.
Integrated Battery Analysis
The built-in Battery Meter provides direct access to important battery information. Individual lithium cell voltages can be viewed by connecting the balance lead, while the powered measurement function displays both battery voltage and internal resistance.
These diagnostic functions make it easier to identify cell imbalance, monitor battery condition and compare the performance of different packs.
Dedicated Motor Run-In Function
For brushed motor preparation and testing, the GENIUS 100 includes a dedicated motor run-in mode. Voltage, current and operating time can be configured directly through the charger, creating a controlled and repeatable run-in process without requiring a separate power supply.
Premium Performance in a Compact Format
Measuring only 105 x 105 x 62mm and weighing approximately 340g, the GENIUS 100 delivers advanced charging and workshop functionality in an exceptionally compact package.
The clear display and intuitive three-button interface provide fast access to battery selection, operating modes and charging parameters. An integrated cooling fan supports reliable operation during demanding charging sessions, while adjustable safety and system settings allow the charger to be configured according to the user’s individual requirements.
Features:
High-performance AC/DC multifunction smart charger
Integrated 100–240V AC power supply
5.8–30V DC input for mobile operation
Up to 100W charging power using AC input
Up to 200W charging power using DC input
Adjustable charging current from 0.1 to 13.0A
Compatible with 1S to 6S LiPo, LiIon, LiFe, LiHV and SSLB batteries
Compatible with 1 to 15-cell NiMH and NiCd batteries
Compatible with 2–20V lead-acid batteries
Balance Charge, Charge, Storage and Discharge programs for lithium batteries
Charge, Discharge, Re-Peak and Cycle programs for NiMH and NiCd batteries
Normal, AGM, Cold Charge and Discharge programs for lead-acid batteries
Integrated high-current balancer with up to 1.3A balancing current
Precise ±0.01V balancing tolerance
Adjustable CC/CV DC power supply mode
Integrated battery voltage meter
Internal resistance measurement
Individual lithium cell voltage display
Dedicated brushed motor run-in mode
Adjustable voltage, current and timer for motor run-in
Connection for an optional temperature sensor
Adjustable safety timer and maximum capacity protection
Minimum input voltage protection
Reverse polarity, overload, overtemperature and connection warnings
Adjustable display brightness, sound level and completion signal
XT60 charging output connector
Integrated cooling fan
Compact and lightweight design
Technical Specifications:
AC input: 100–240V
DC input: 5.8–30V
Maximum charging power on AC: 100W
Maximum charging power on DC: 200W
Charging current: 0.1–13.0A
Discharge current: up to 2A
Maximum balancing current: 1.3A
Balancing tolerance: ±0.01V
Lithium battery compatibility: 1S–6S
NiMH/NiCd compatibility: 1–15 cells
Lead-acid battery compatibility: 2–20V
Dimensions: 105 x 105 x 62mm
Weight: approximately 340g
Packaging Content:
Team Corally GENIUS 100 Smartcharger
AC power cable
Instruction manual
