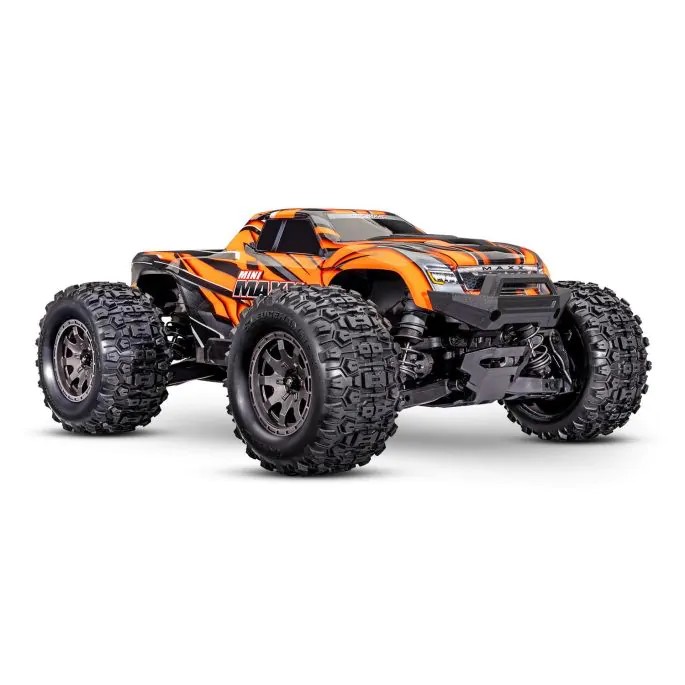

Traxxas Mini Maxx BL-2s Orange incl battery

Description
Side SpecsFront Specs
Model Name: Mini Maxx
Model Type: Monster Truck
Top Speed: 30+
Skill Level: 1
Scale: Maxx
Length: 13.58 inches (345 mm)
Width: 9.94 inches (253 mm)
Height: 5.39 inches (137 mm)
Weight: 3.62 pounds (1.64 kg)
Front Track: 9.94 inches (253 mm)
Rear Track: 9.94 inches (253 mm)
Wheelbase: 8.66 inches (220 mm)
Ground Clearance: 1.06 inches (27 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Direct drive
Differential Type: Planetary, steel gear
Overall Drive Ratio: 9.20:1
Gear Pitch: 32
Servo: 2056
Radio System: TQ 2.4 GHz (2-channel)
Battery Compartment Specs: 113 mm L x 41 mm W x 22 mm H
MOTOR SPECS
Motor Specs
Motor Name: BL-2s 3300 kV
Motor Type: Sensorless brushless
Motor Weight: 7.51 ounces (213 g)
Motor Length: 3.15 inches (80 mm)
Motor Diameter: 1.42 inches (36 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: Traxxas Quick Connect Motor Plug
ESC SPECS
ESC Specs
ESC Name: BL-2s Electronic Speed Control
ESC Type: Brushless
ESC Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight: 3.07 ounces (87 g)
BEC Voltage: 6 volts
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan
Battery Connector: Traxxas High-Current Connector



30+ mph Top Speed
BL-2s™ Waterproof Electronic Speed Control
Heat sink accepts accessory cooling fan (3340)
Three programmable drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse
Traxxas EZ-Set® one-button setup
Built-in two-stage low-voltage detection
BL-2s™ Brushless Motor
Integrated cooling fan
Low-maintenance design
Efficient ball bearings
3300 Kv
Battery and Charger Included
High-capacity 2-cell LiPo battery
7.4 volts
3500 mAh for extended run time
2-amp USB-C charger
iD® technology for faster, safer charging
TQ™ 2.4 GHz Transmitter
Full-size 2-channel transmitter
All-day comfort with precise long-range control
Clipless Body Mount System
Quick and easy installation and removal
Nerf bar channels for side body support
Reinforced for extra protection against tearing
1/10 Scale 4X4 Drivetrain
Full-time shaft-driven 4-wheel drive
1/10 scale extreme-duty telescoping driveshafts
Direct drive (no transmission)
Fixed gear mesh system
Large 32-pitch gears
Sealed planetary steel-gear differentials
Fixed gear mesh system
Modular Composite Chassis
Modular chassis with interlocking front and rear bulkheads
Absorbs and distributes impact energy
Easy to service and access components
Driveline is sealed in the chassis to keep out dirt
Easy Battery Access
Battery is protected deep in the chassis
Battery hold-down pivots for easy access
More secure than conventional retention systems
Steering
1/10 scale 2056 waterproof high-torque servo
Heavy-duty double-shear bellcranks
Cam-style servo saver
Suspension
Heavy duty, double-shear suspension arms
Dual wishbone design
Extra tough outer suspension components
Oil-Filled Ultra Shocks™
Full size 1/10 scale shocks
Large oil capacity
Easy to tune
Bumpers and Skid Plates
Tough energy absorbing bumpers
High-angle front skid plate
Rugged interlocking skid plates
Smooth undertray eliminates snags
Integrated nerf bars for side impact resistance
Wheels and Tires
2.4″ black multi-spoke wheels
4″ Sledgehammer® tires with foam inserts
Wide treadblock design
Multiple layers of biting edges
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings

What’s In The Box:
Mini Maxx Ready-To-Race monster truck
BL-2s Brushless Power System
3500 mAh 2-cell LiPo battery
2-amp USB-C charger
Quick Start Guide
TQ 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
